AFFORDABLE 7X14 DUMP TRAILER

The GT-714 is our affordable 7X14 dump trailer and has a 10096lb. payload capacity and has many upgrade options including a Gooseneck coupler. As one of our more popular models, it also has an upgrade hydraulic telescoping 3-stage lift which provides an additional dumping angle.
Griffin Trailers - GT5X8 Hydraulic Dump Trailer
Griffin Trailers - GT5X8 Hydraulic Dump Trailer

Optional dual hydraulic cylinders

Griffin Trailers - GT5X8 Hydraulic Dump Trailer

The convenient side 2"x4" stakeholders allow for additional DIY height.

Griffin Trailers - GT5X8 Hydraulic Dump Trailer

Six additional colors options include fire-engine red.

Griffin Trailers - GT5X8 Hydraulic Dump Trailer

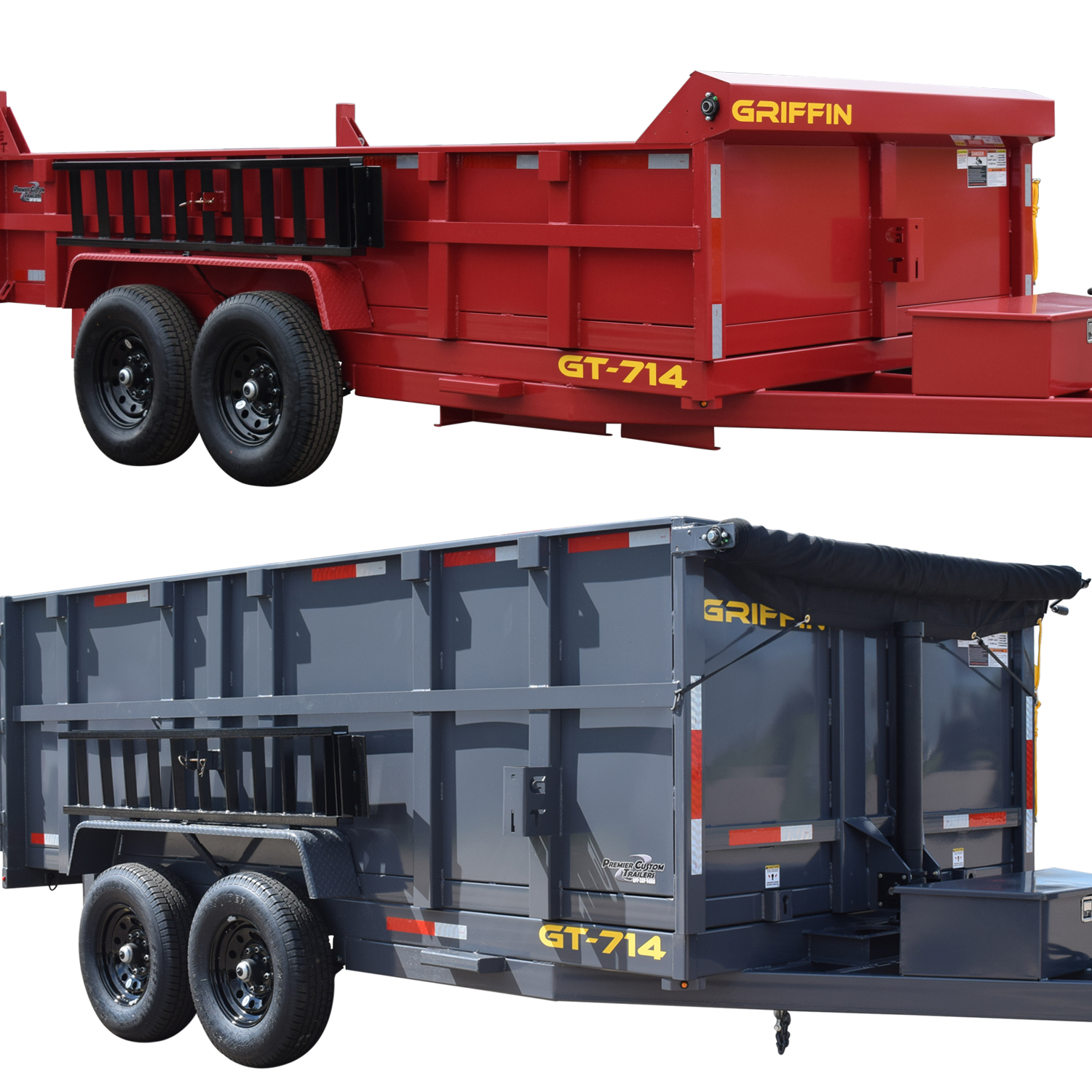

The extended side option provides additional load capacity.

click image to enlarge

* photos on this page may show optional items

<NO DISPLAY>

STANDARD FEATURES

Guarantee
<learn more>

Wheels

Black Powder Coat

Coupler

2-5/16" - Adjustable Coupler

Tires

16" Radial

Power Unit

12v DC Hydraulic Pump - (3200 PSI Pwr Up) (1500 PSI Pwr Down)

Spare Tire Mount

Standard Mount

Battery

Interstate Deep Cycle Marine Battery

Ramps

80" C-Channel Fender mounted ramps

Jack

Adjustable 7000lb., Top Wind Drop Leg

Lighting

Amber & Red LED

Control Box w/Key Lock

Easy Front Access

Wiring Harness

3-Piece Plug & Play

Fenders

14ga. Formed Treadplate

Electric Plug

7-Pin Round

Stake Pockets

2" X 4" Tube

Lift System

(2) 3" X 30" Hydraulic Cylinders

Gussets

Front & Rear 2" X 12" Dimension for Wall Extension

Floor & Walls

10ga. Smooth Steel

Safety Chains

(2) Forged Slip Hook - 5/16"x35" 11700lbs. Cap

Integrated Tarp System

Fully Covered Housing

D-Rings

(5) 5000lb. D-Rings Welded Into Floor

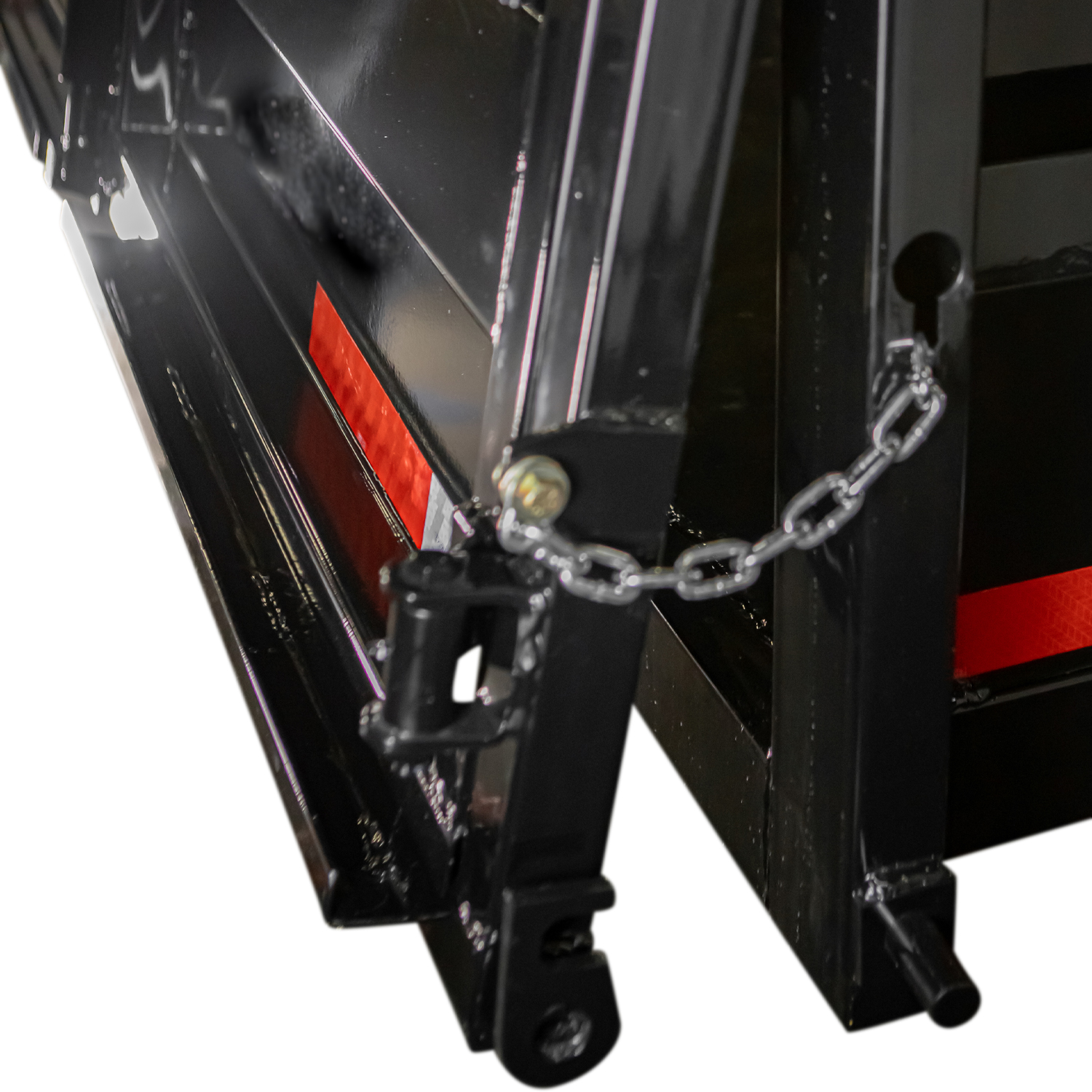

Rear Gate

2-Way Combination Spreader / Barn

Axles

Tandem - EZ Lube w/Galvanized Components

Paint Finish

High Gloss Black Powder Coat

Suspension

Equalized Leaf Spring

* Specs, options, dimensions, brands are subject to change without prior notification.

CHASSIS SPECIFICATIONS

Griffin Trailers - Chassis Specifications

The GT-714 is our affordable 7X14 dump trailer and has a 10096lb. payload capacity and has many upgrade options including a Gooseneck coupler.

Style

Low-Pro

Overall Length

222"

GVWR

14000lbs.

Length

14ft. / 168"

GAWR

7000lbs.

Width

7ft. / 83"

Curb Weight

3904lbs.

Tongue

2" X 5" Tube

Payload

10096lbs.

Tongue Weight (est.)

580lbs.

Dump Capacity

10000lbs.

* Specs, options, dimensions, brands are subject to change without prior notification.

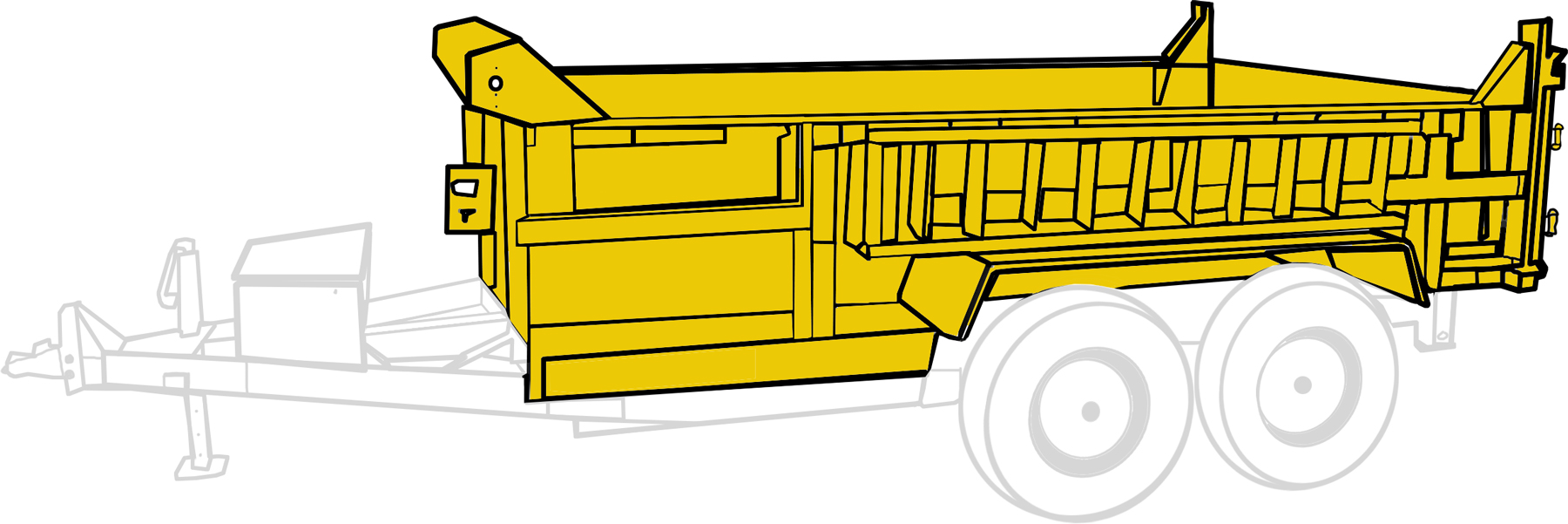

BED SPECIFICATIONS

Griffin Trailers - Bed Specifications

The GT-714 is our affordable 7X14 dump trailer and has a 10096lb. payload capacity and has many upgrade options including a Gooseneck coupler.

Length

14ft. / 168"

Sidewall Height

24"

Width

7ft. / 82.5"

Floor Height

29"

Coupler Height

18"

Cross Member (16" on Center)

2" X 3" Tube

* Specs, options, dimensions, brands are subject to change without prior notification.

UPGRADE OPTIONS

COLOR OPTIONS

Aside from the standard exterior color of black, we offer the following colors as an option.

* Click on trailer to see enlarged image
* Colors shown are approximate representation
* Examples shown on GT714 but available on any model

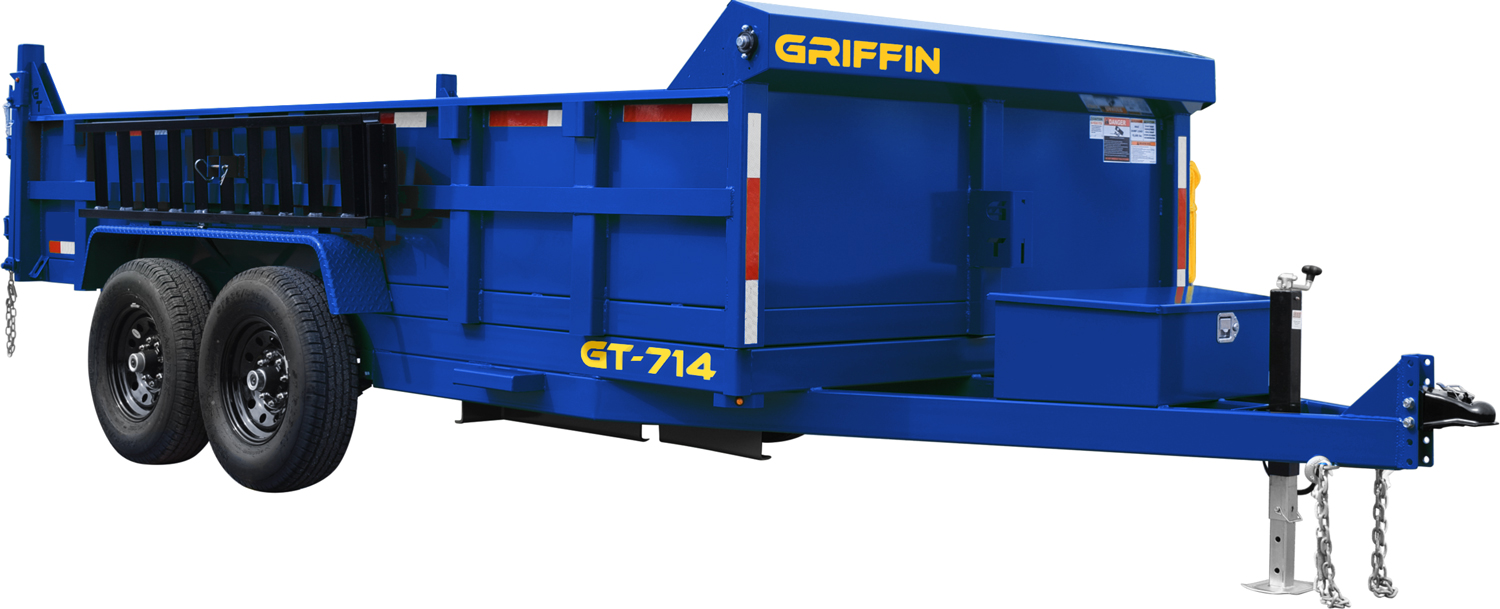

Griffin Trailers - Royal Blue Optional Paint
Griffin Trailers - Yellow Optional Paint

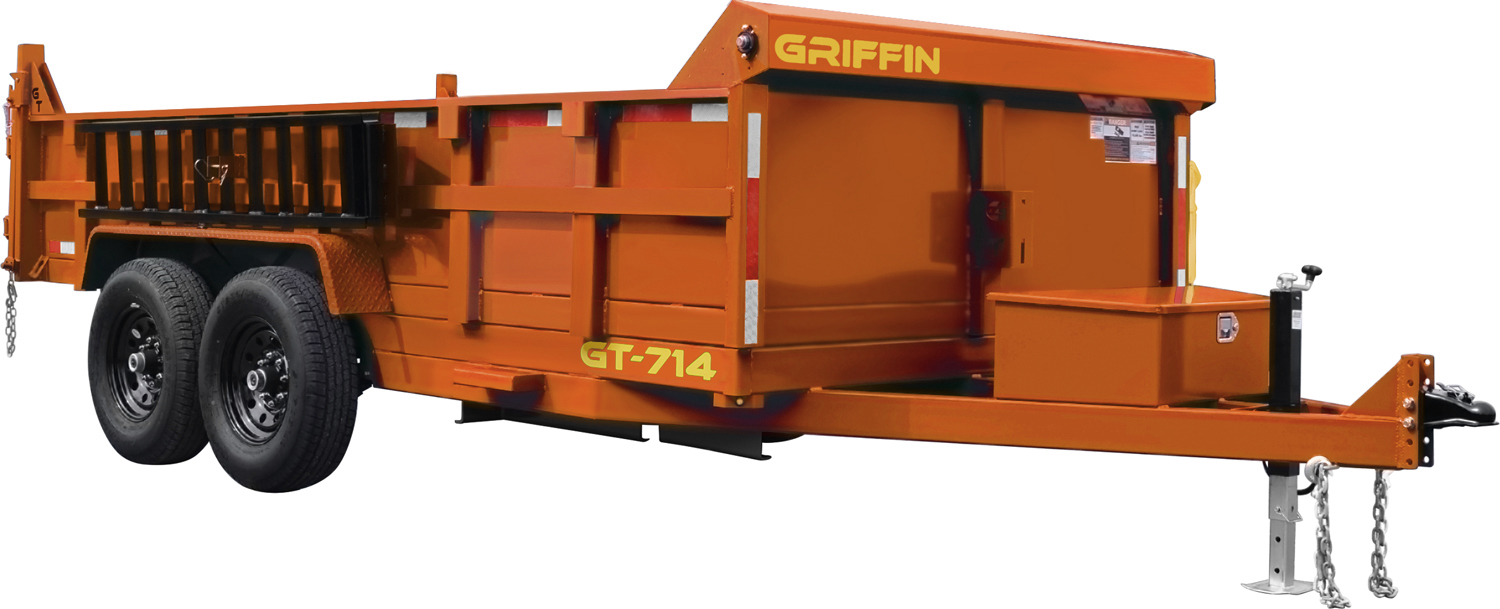

Griffin Trailers - Orange Optional Paint

ROYAL BLUE

YELLOW

ORANGE

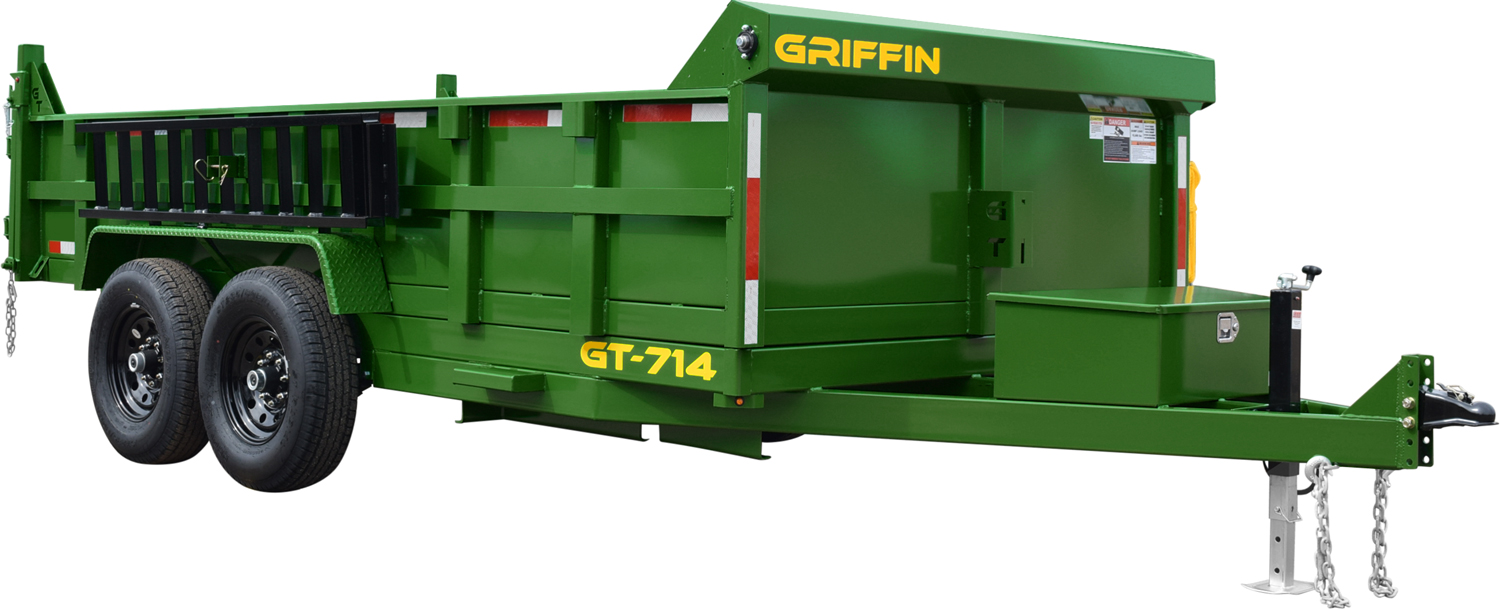

Griffin Trailers - Green Optional Paint
Griffin Trailers - Red Optional Paint
Griffin Trailers - Charcoal Grey Optional Paint

GREEN

RED

CHARCOAL GREY

Griffin Trailers - Royal Blue Optional Paint

ROYAL BLUE

Griffin Trailers - Yellow Optional Paint

YELLOW

Griffin Trailers - Orange Optional Paint

ORANGE

Griffin Trailers - Green Optional Paint

GREEN

Griffin Trailers - Red Optional Paint

RED

Griffin Trailers - Charcoal Grey Optional Paint

CHARCOAL GREY

ADDITIONAL PHOTOS / VIDEO

Griffin Trailers - LED Lighting

Red & Amber LED Lighting

Griffin Trailers - Control Box with Keylock

Optional battery charger plug in.

Griffin Trailers - Single Axle with Billet Fenders

Optional dual 3" X 30" cylinder lifts

<NO DISPLAY>

STANDARD FEATURES

Guarantee
<learn more>

Wheels

Black Powder Coat

Coupler

2-5/16" - Adjustable Coupler

Tires

16" Radial

Power Unit

12v DC Hydraulic Pump - (3200 PSI Pwr Up) (1500 PSI Pwr Down)

Spare Tire Mount

Standard Mount

Battery

Interstate Deep Cycle Marine Battery

Ramps

80" C-Channel Fender mounted ramps

Jack

Adjustable 7000lb., Top Wind Drop Leg

Lighting

Amber & Red LED

Control Box w/Key Lock

Easy Front Access

Wiring Harness

3-Piece Plug & Play

Fenders

14ga. Formed Treadplate

Electric Plug

7-Pin Round

Stake Pockets

2" X 4" Tube

Lift System

(2) 3" X 30" Hydraulic Cylinders

Gussets

Front & Rear 2" X 12" Dimension for Wall Extension

Floor & Walls

10ga. Smooth Steel

Safety Chains

(2) Forged Slip Hook - 5/16"x35" 11700lbs. Cap

Integrated Tarp System

Fully Covered Housing

D-Rings

(5) 5000lb. D-Rings Welded Into Floor

Rear Gate

2-Way Combination Spreader / Barn

Axles

Tandem - EZ Lube w/Galvanized Components

Paint Finish

High Gloss Black Powder Coat

Suspension

Equalized Leaf Spring

* Specs, options, dimensions, brands are subject to change without prior notification.

CHASSIS SPECIFICATIONS

Griffin Trailers - Chassis Specifications

The GT-714 is our affordable 7X14 dump trailer and has a 10096lb. payload capacity and has many upgrade options including a Gooseneck coupler.

Style

Low-Pro

Overall Length

222"

GVWR

14000lbs.

Length

14ft. / 168"

GAWR

7000lbs.

Width

7ft. / 83"

Curb Weight

3904lbs.

Tongue

2" X 5" Tube

Payload

10096lbs.

Tongue Weight (est.)

580lbs.

Dump Capacity

10000lbs.

* Specs, options, dimensions, brands are subject to change without prior notification.

BED SPECIFICATIONS

Griffin Trailers - Bed Specifications

The GT-714 is our affordable 7X14 dump trailer and has a 10096lb. payload capacity and has many upgrade options including a Gooseneck coupler.

Length

14ft. / 168"

Sidewall Height

24"

Width

7ft. / 82.5"

Floor Height

29"

Coupler Height

18"

Cross Member (16" on Center)

2" X 3" Tube

* Specs, options, dimensions, brands are subject to change without prior notification.

UPGRADE OPTIONS

DLH 110v. Inline

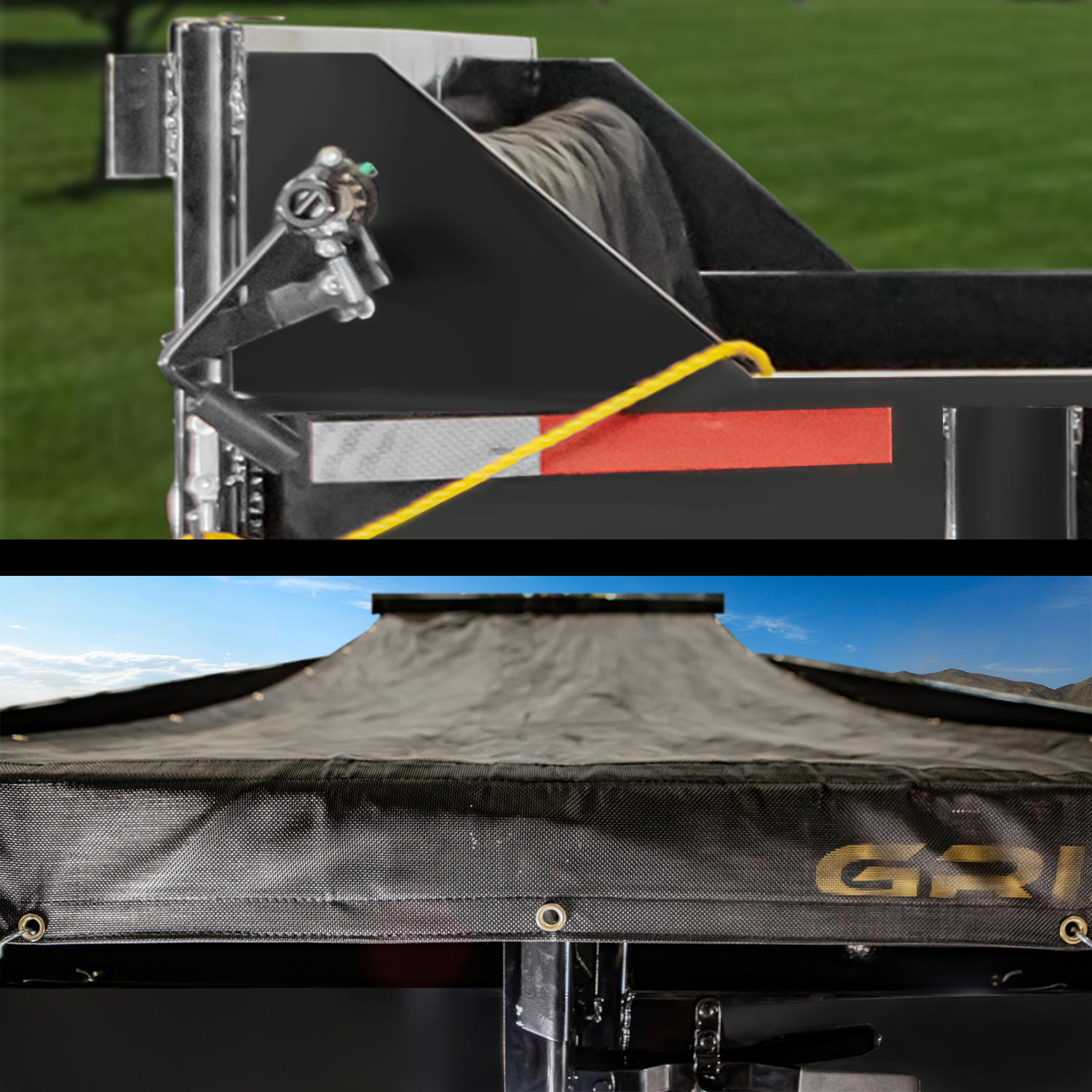

6' X 16' - Ratcheting Black Mesh

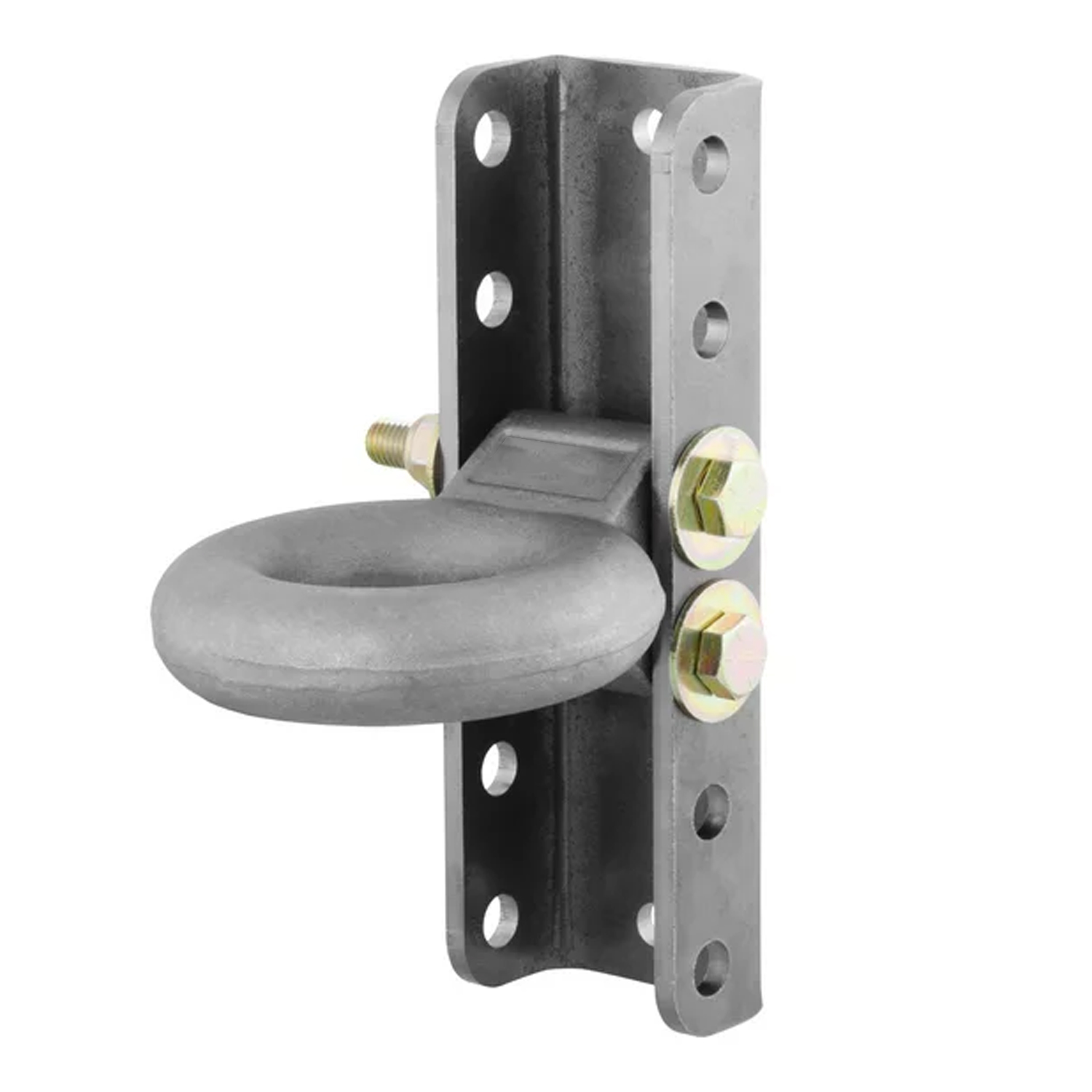

5 Position Adjustable

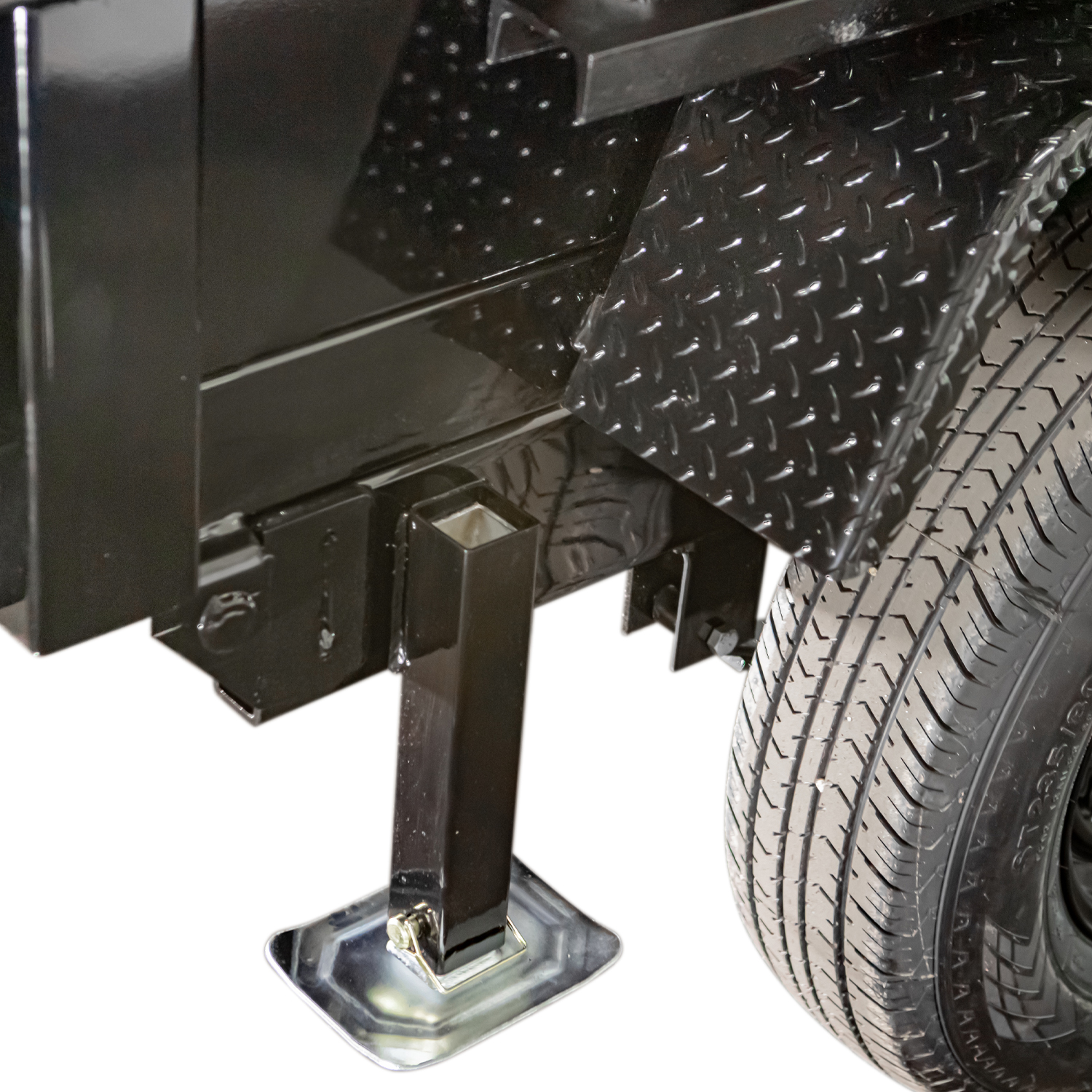

Rear Mounted Adjustable Legs

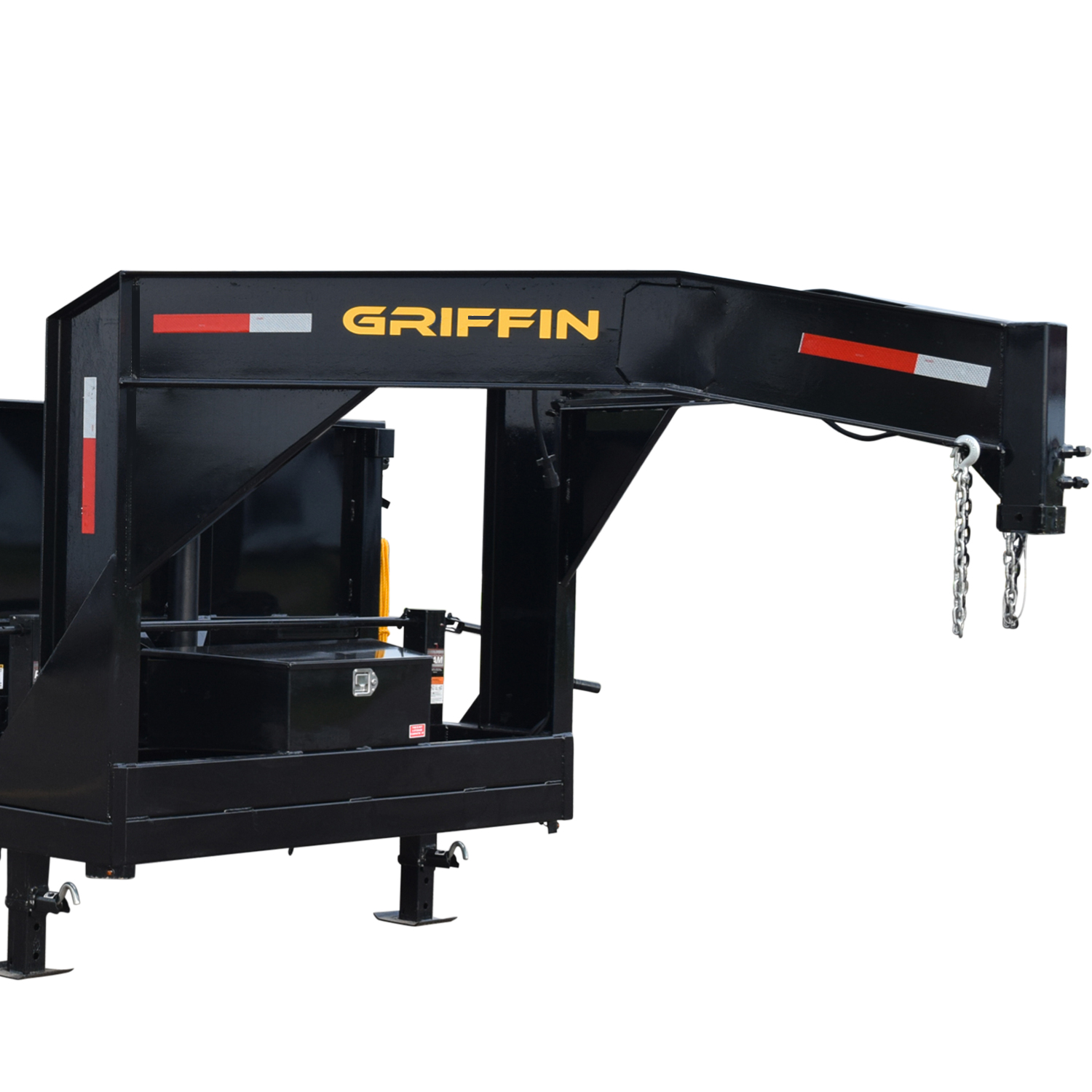

Adj. w/10k# Drop Leg Jack

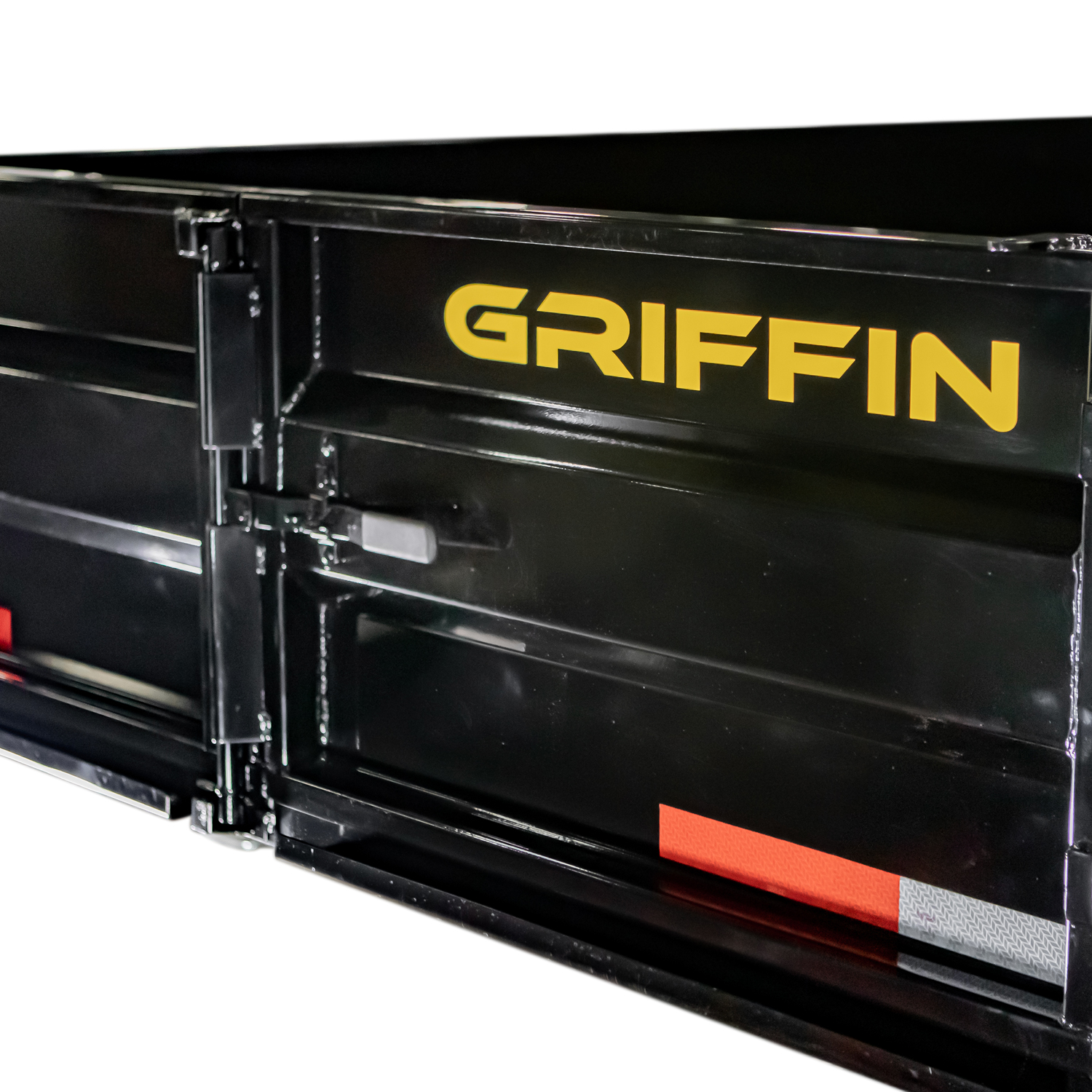

Barn Door Style (No Charge)

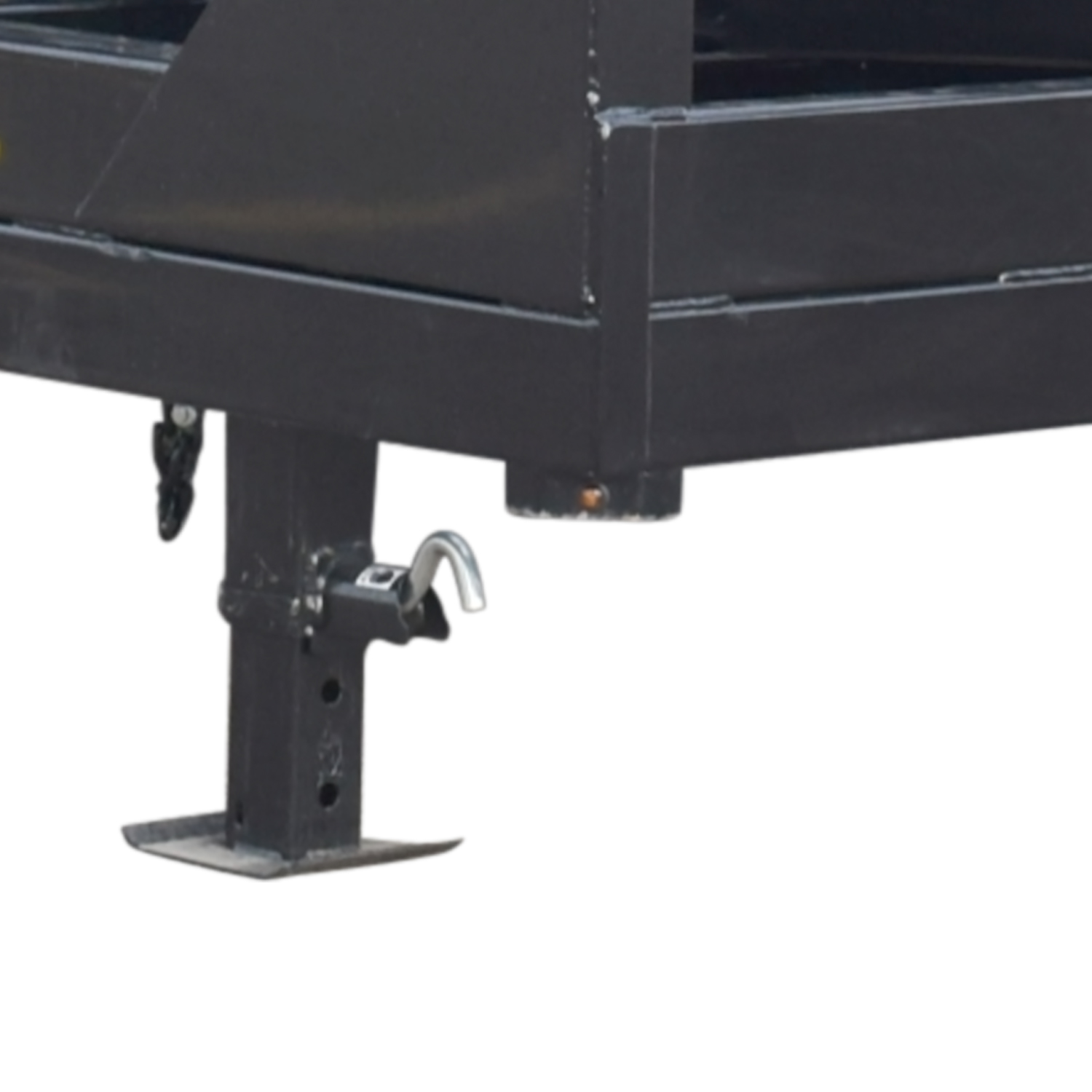

Upgrade Jack

10000lb. Drop Leg

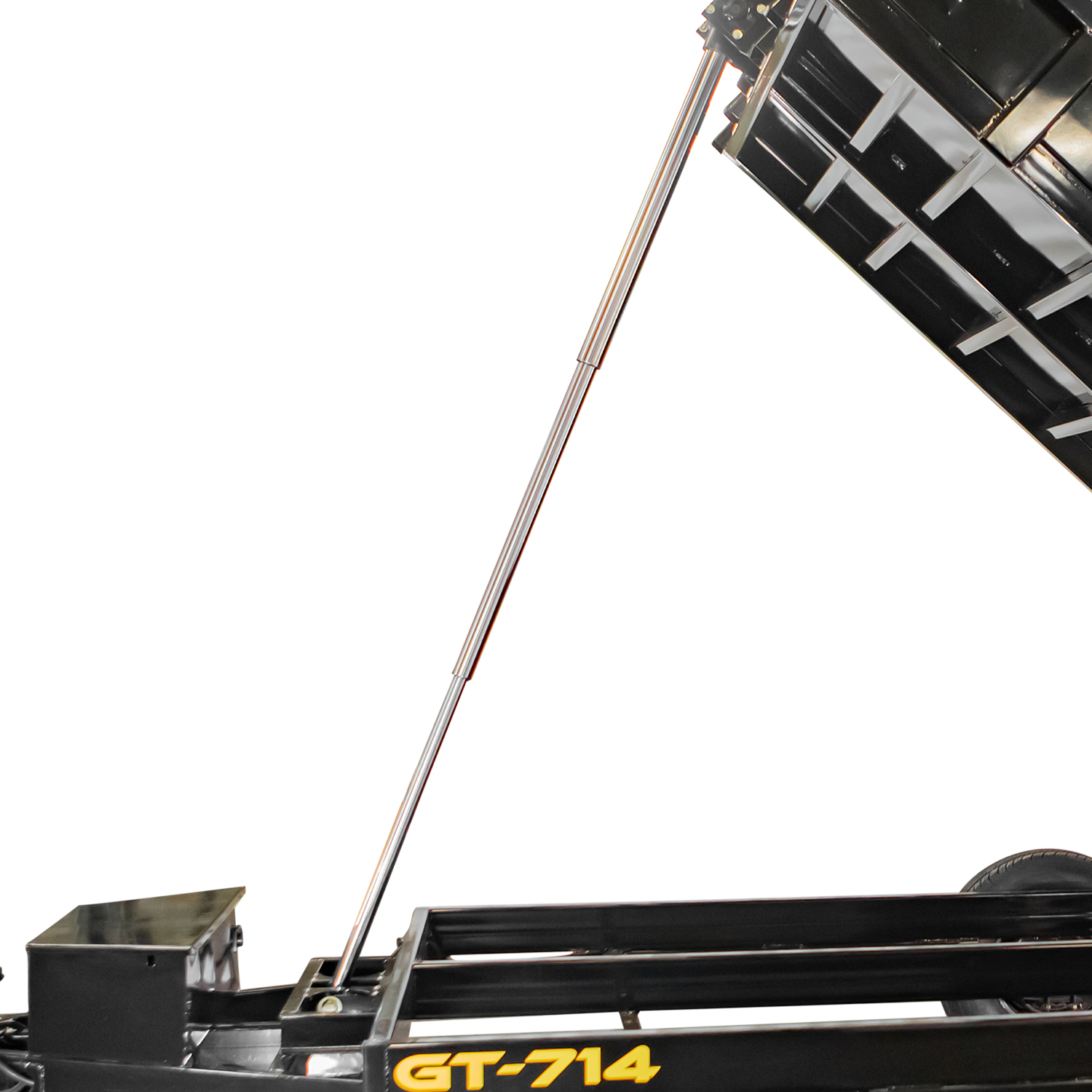

3-Stage Telescopic
